2021-2022 / VEX U

Team President

During this season, I led a team of 15+ engineers to design, build and program a 24" and 15" robot. I also spearheaded the mechanical design of the 24" robot including a four-bar lift, over-center locking pneumatic clamps, conveyor uptake, drivetrain packaging, and PID position with odometry localization for globalized autonomous routines.

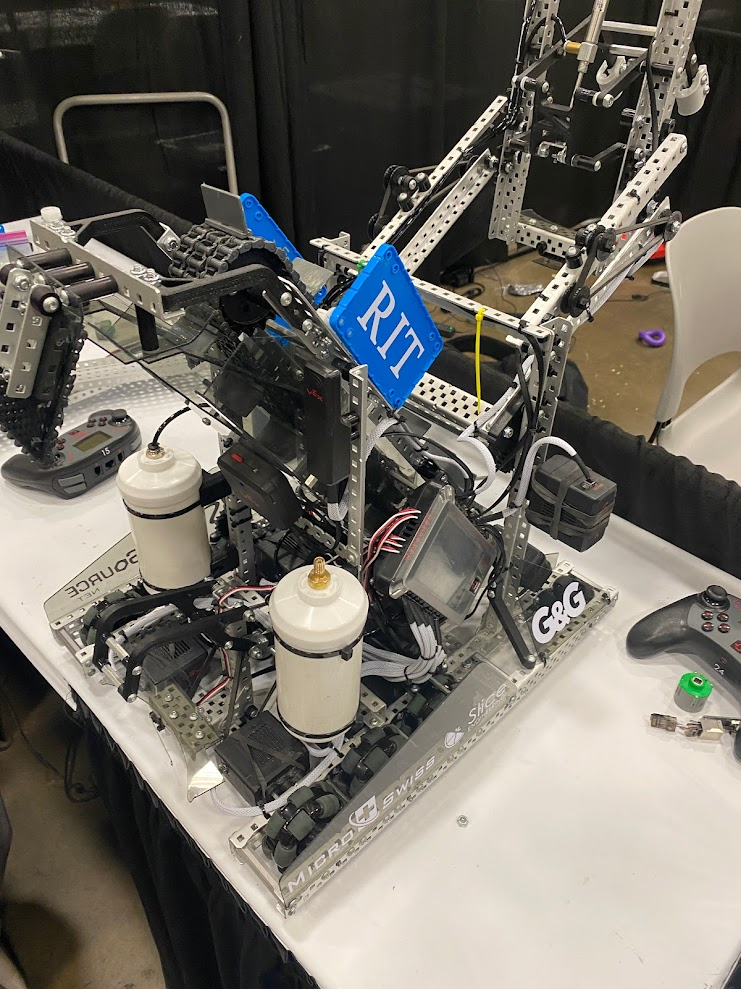

2021-2022 VEX U robot side mechanism view
Four-bar, intake, and deposit mechanism package from the 2021-2022 robot.
2021-2022 VEX U robot drivetrain and linkage view
Me holding the innovate award at the world championships.
Result

Innovate Award at World Championships

The robot earned the Innovate Award at Worlds and ranked third in qualification rounds. The team was recognized for implementing an innovative design especially given the resources we had to work with. More importantly for me, it became the clearest example of mechatronic integration: mechanism design, controls, team leadership, and real competition support in one project.

Season Media

Tipping Point image and video archive

2021-2022 Tipping Point robot assembly
24" Right View
2021-2022 Tipping Point design screenshot
24" Rear ISO View
2021-2022 Tipping Point robot at competition
24" Back View

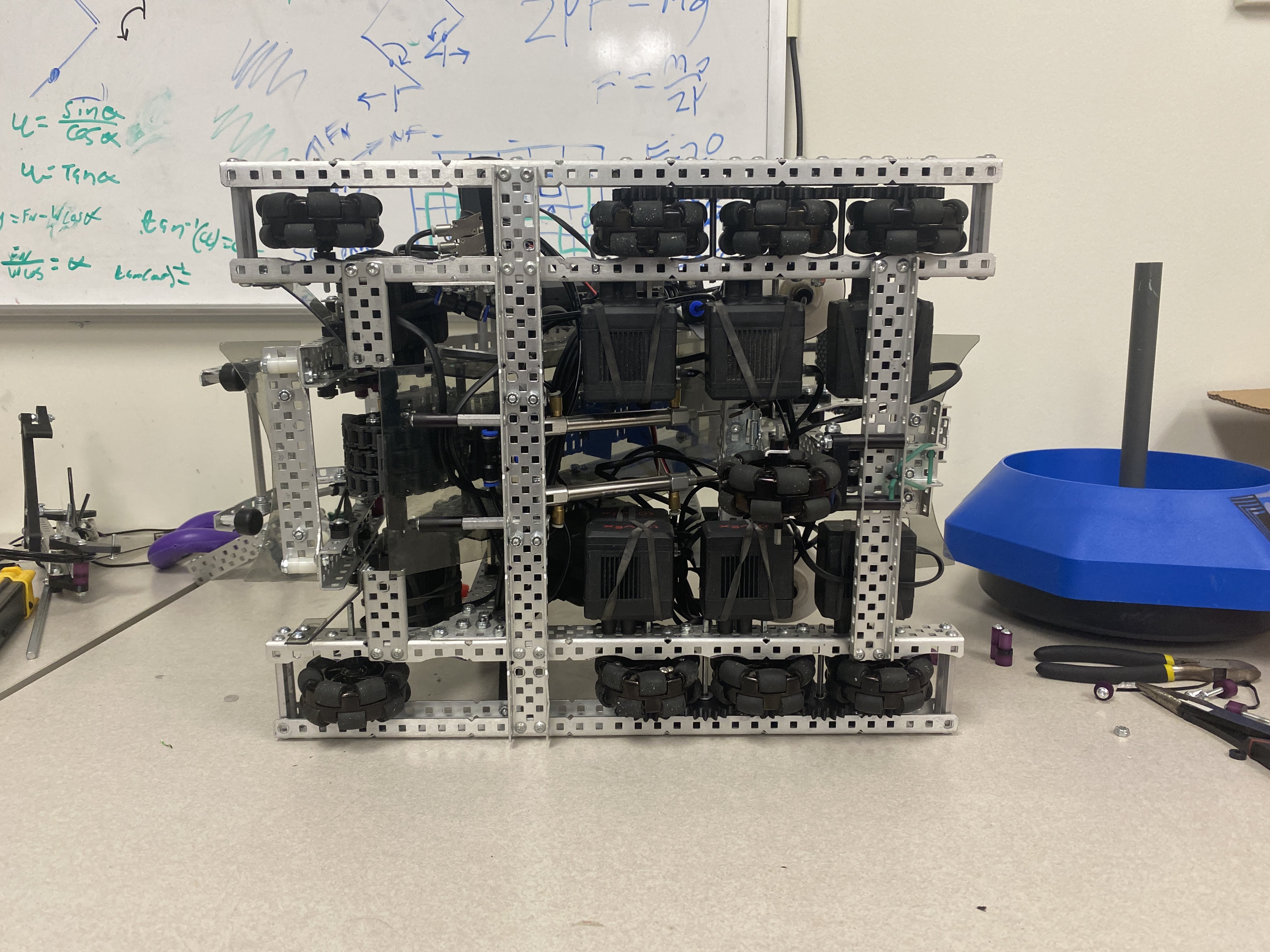

2021-2022 Tipping Point robot field view
24" Bottom View

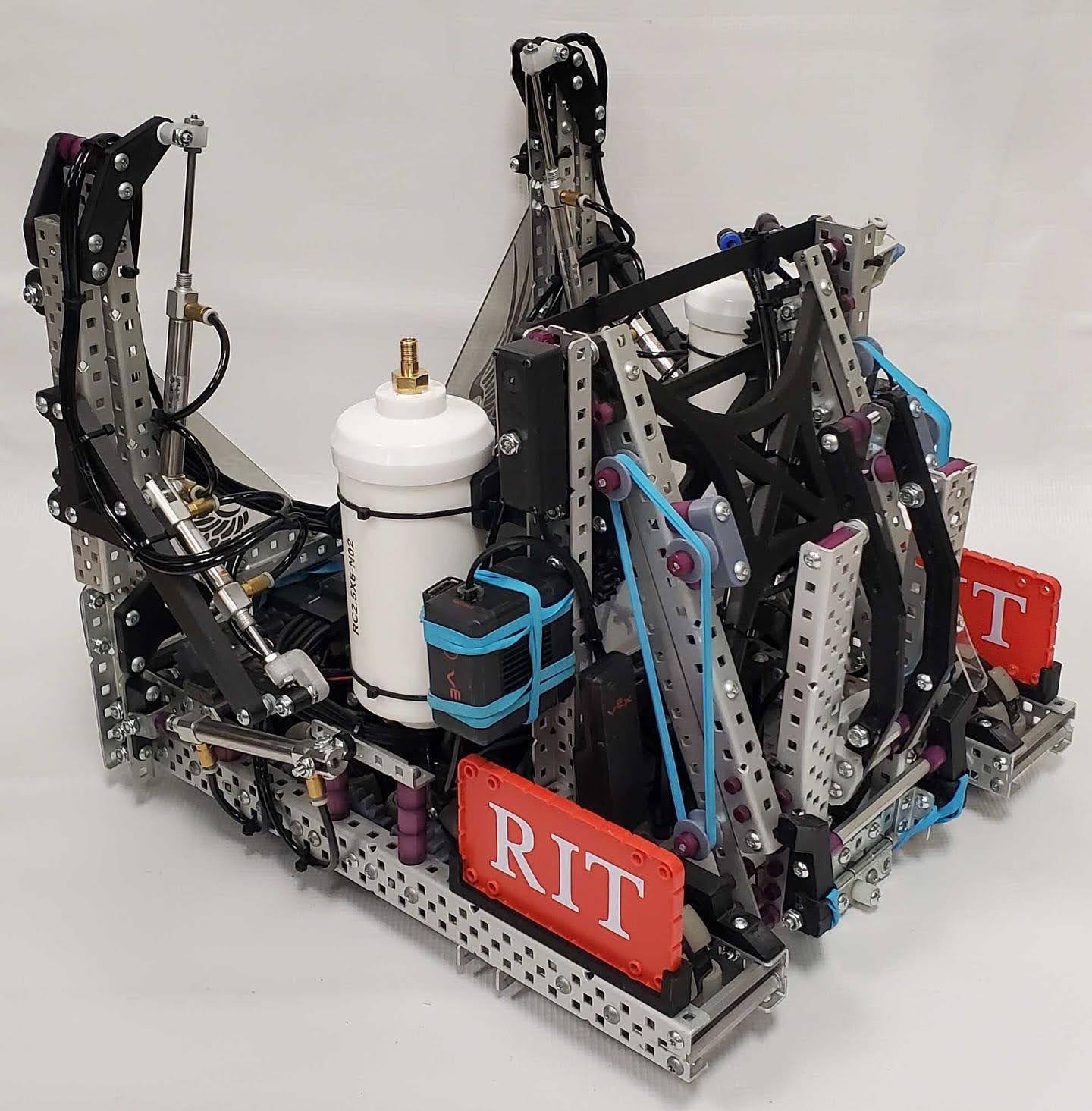

2021-2022 Tipping Point drivetrain detail
15" Front ISO View

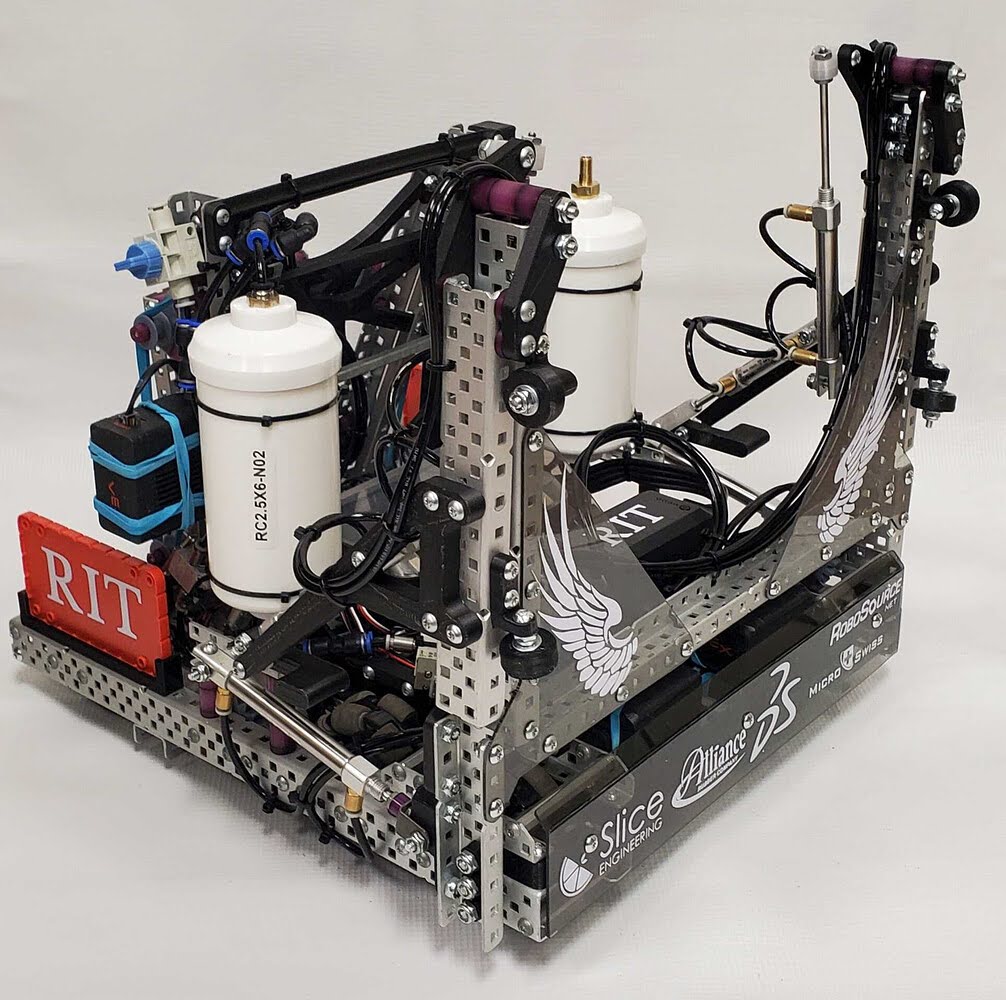

2021-2022 Tipping Point linkage detail
15" Rear ISO View

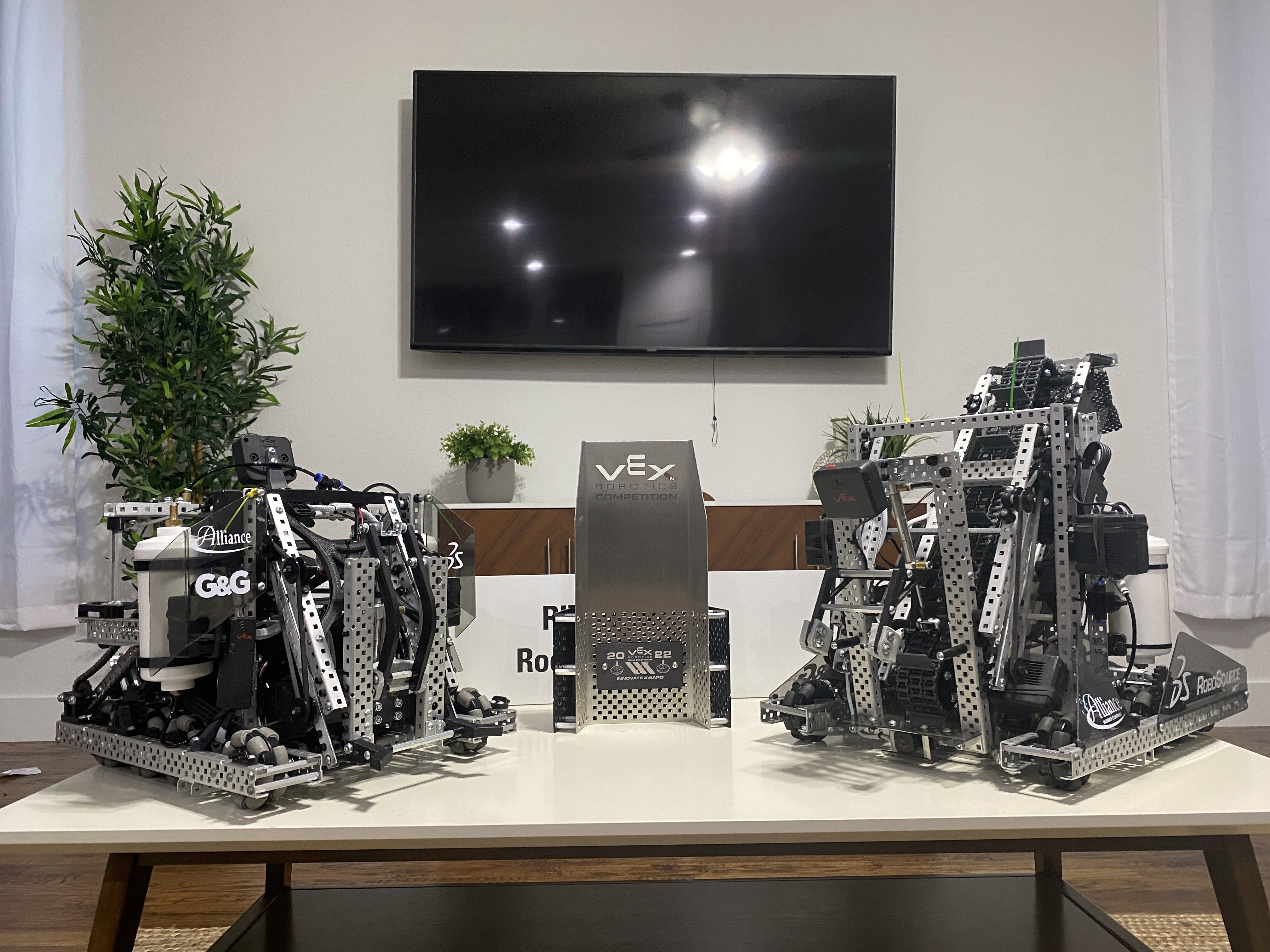

2021-2022 Tipping Point intake detail
Both robots after the world championship

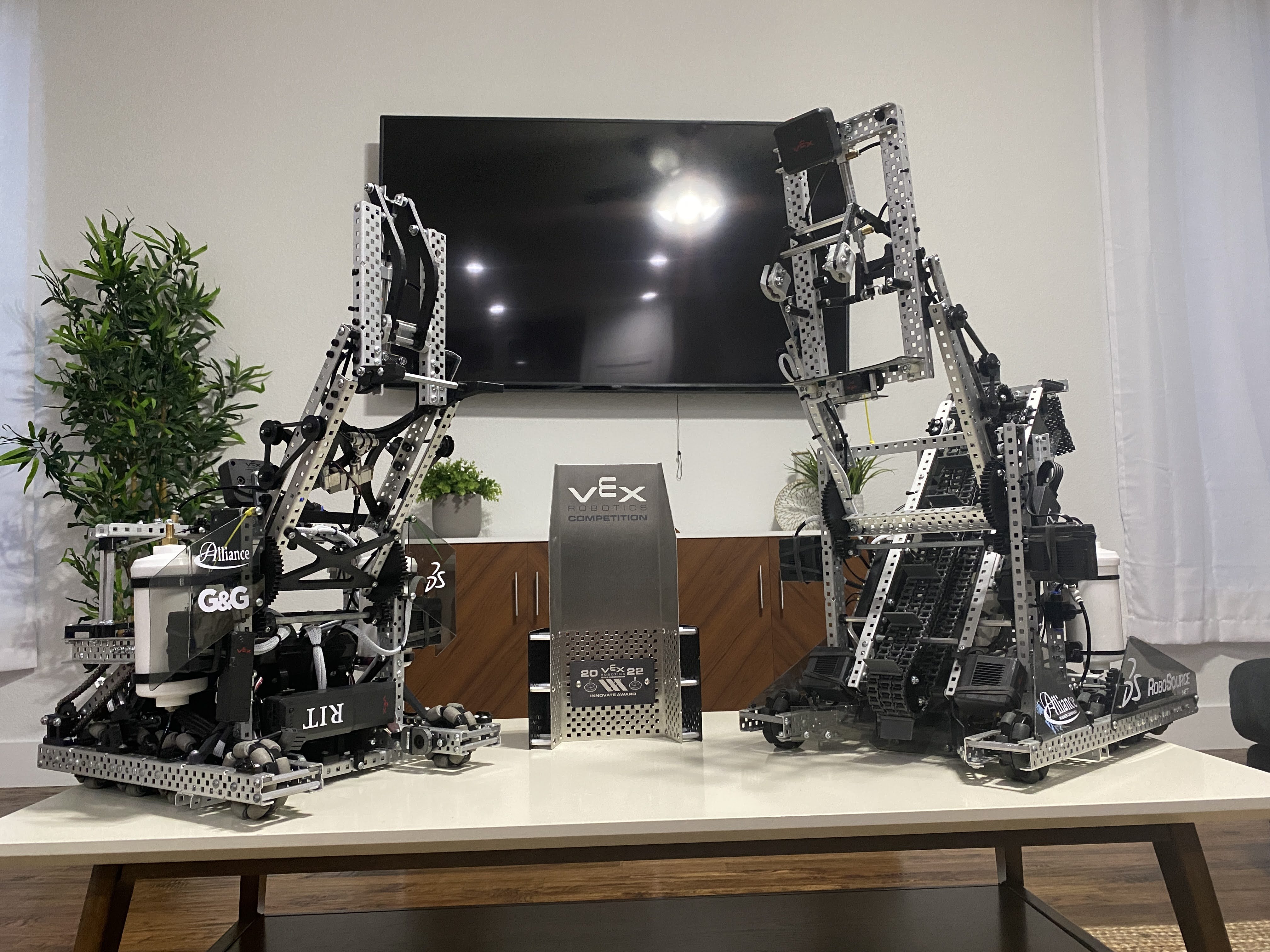

2021-2022 Tipping Point robot service view
Both robots after the world championship with lift raised

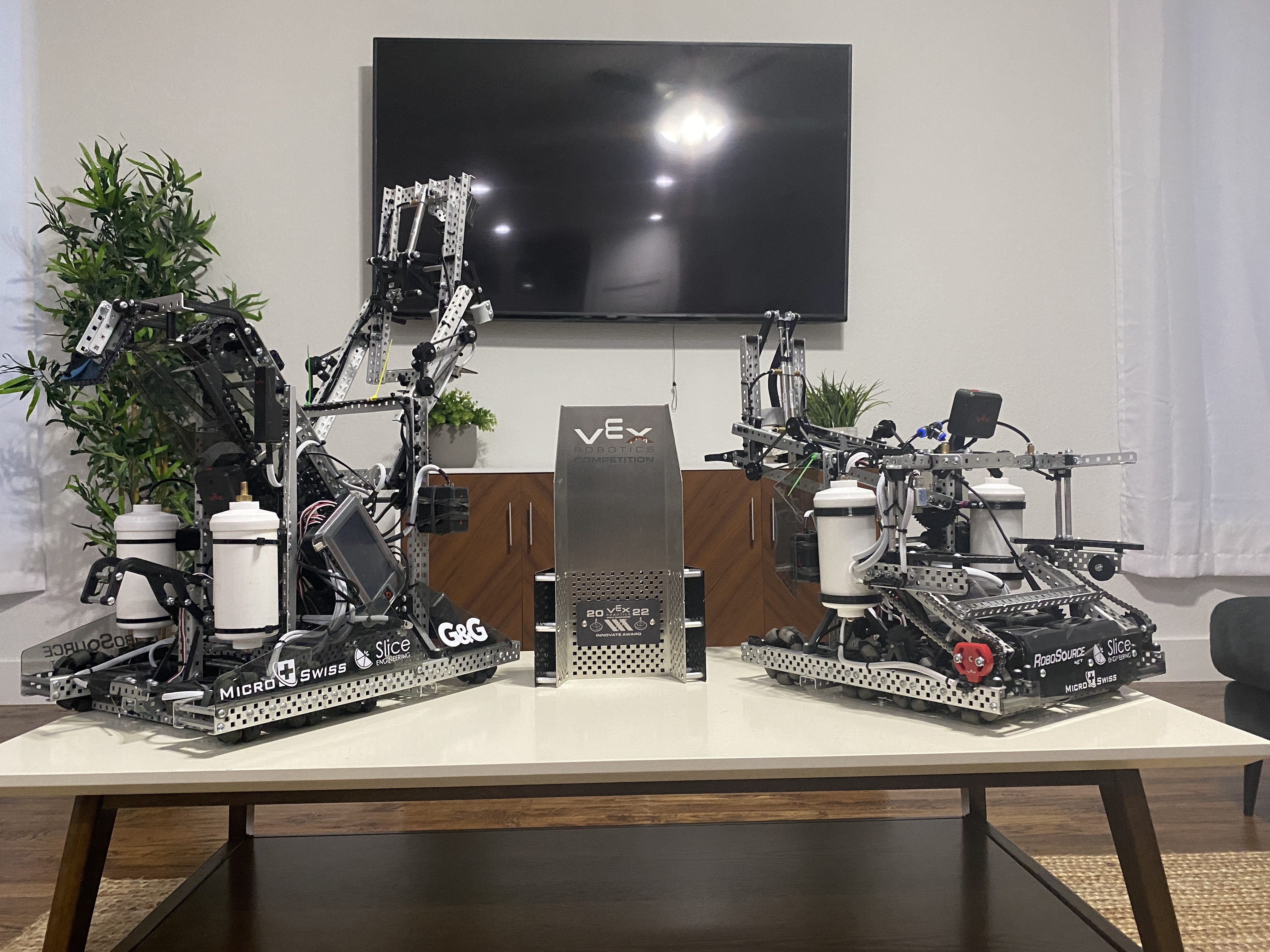

2021-2022 Tipping Point robot build view
Both robots after the world championship, rear view

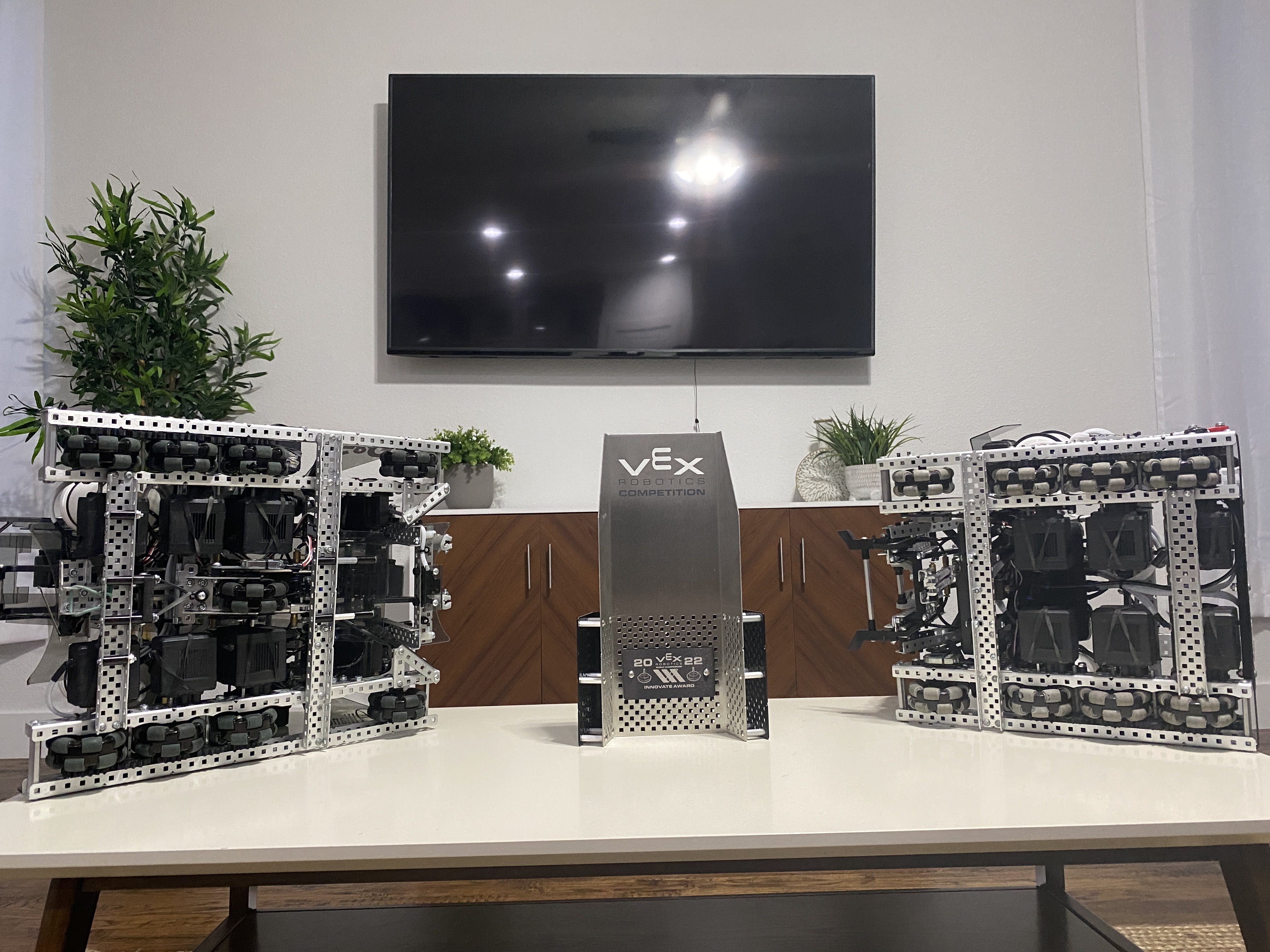

2021-2022 Tipping Point mechanism package
Both robots bottom view
Over-center locking front clamp
coordinated vision aided autonomous routine
